型號
|

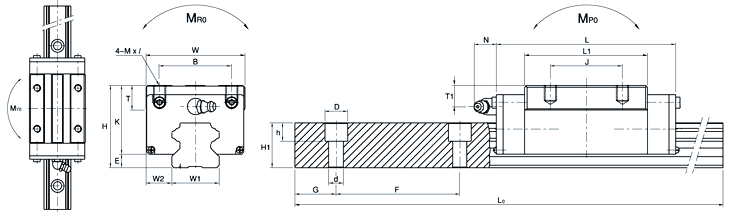

安裝尺寸
|
滑塊尺寸
|
|
高度
H
|
E
|
W2
|
寬度
W
|
長度
L
|
安裝孔尺寸
|
L1
|
K
|
T
|
注油嘴
|
|
B×J
|
M×l
|
安裝孔
|
T1
|
N
|
|
SBG15SL
|
28
|
2.65
|
9.5
|
34
|
58.8
|
26×26
|
M4×5
|
38.8
|
25.35
|
8
|
Ø3.5
|
8
|
5
|
|
SBG20SL
|
30
|
3.5
|
12
|
44
|
77.2
|
32×36
|
M5×8
|
50.8
|
26.5
|
8
|
M6×0.75
|
7
|
9.8
|
|
SBG20SLL
|
30
|
3.5
|
12
|
44
|
93.2
|
32×50
|
M5×8
|
66.8
|
26.5
|
8
|
M6×0.75
|
7
|
9.8
|
|
SBG25SL
|
40
|
5
|
12.5
|
48
|
86.9
|
35×35
|
M6×8
|
59.5
|
35
|
12
|
M6×0.75
|
10.5
|
9.8
|
|
SBG25SLL
|
40
|
5
|
12.5
|
48
|
106.4
|
35×50
|
M6×8
|
79
|
35
|
12
|
M6×0.75
|
10.5
|
9.8
|
|
SBG30SL
|
45
|
6.5
|
16
|
60
|
98
|
40×40
|
M8×10
|
70.4
|
38.5
|
12
|
M6×0.75
|
11.5
|
10.7
|
|
SBG30SLL
|
45
|
6.5
|
16
|
60
|
120.5
|
40×60
|
M8×10
|
92.9
|
38.5
|
12
|
M6×0.75
|
11.5
|
10.7
|
|
SBG35SL
|
55
|
7.5
|
18
|
70
|
109.5
|
50×50
|
M8×12
|
80.4
|
47.5
|
15
|
M6×0.75
|
16.5
|
10.7
|
|
SBG35SLL
|
55
|
7.5
|
18
|
70
|
135
|
50×72
|
M8×12
|
105.9
|
47.5
|
15
|
M6×0.75
|
16.5
|
10.7
|
|
SBG45SL
|
70
|
7.3
|
20.5
|
86
|
136
|
60×60
|
M10×17
|
98
|
62.7
|
15
|
PT 1/8
|
20.5
|
11
|
|
SBG45SLL
|
70
|
7.3
|
20.5
|
86
|
168
|
60×80
|
M10×17
|
130
|
62.7
|
15
|
PT 1/8
|
20.5
|
11
|
|
SBG55SL
|
80
|
9.8
|
23.5
|
100
|
160
|
75×75
|
M12×18
|
118
|
70.2
|
18
|
PT 1/8
|
22
|
11
|
|
SBG55SLL
|
80
|
9.8
|
23.5
|
100
|
198
|
75×95
|
M12×18
|
156
|
70.2
|
18
|
PT 1/8
|
22
|
11
|
|
SBG65SL
|
90
|
17.5
|
31.5
|
126
|
189
|
76×70
|
M16×20
|
147
|
72.5
|
23
|
PT 1/8
|
15
|
11
|
|
SBG65SLL
|
90
|
17.5
|
31.5
|
126
|
249
|
76×120
|
M16×20
|
207
|
72.5
|
23
|
PT 1/8
|
15
|
11
|
|
|
|
|
|
滑軌尺寸
|
負載能力
|
重量
|
|
寬度
W1
|
高度
H
|
孔間距
F
|
安裝孔尺寸
d×D×h
|
G
|
導軌最大
長度
LOMAX
|
動負載
C(N)
|
靜負載
CO(N)
|
靜態扭矩
(kgf·m)
|
滑塊
(kg)
|
滑軌
(kg/m)
|
|
MRO
|
MPO
|
MYO
|
|
SBG15SL
|
15
|
15
|
60
|
4.5×7.5×5.3
|
20
|
3000
|
8330
|
13426
|
7
|
5
|
5
|
0.2
|
1.45
|
|
SBG20SL
|
20
|
17.5
|
60
|
6×9.5×8.5
|
20
|
4000
|
14210
|
25088
|
22
|
18
|
18
|
0.33
|
2.20
|
|
SBG20SLL
|
20
|
17.5
|
60
|
6×9.5×8.5
|
20
|
4000
|
16905
|
36554
|
29
|
32
|
32
|
0.45
|
2.20
|
|
SBG25SL
|
23
|
21.8
|
60
|
7×11×9
|
20
|
4000
|
20972
|
39200
|
36
|
32
|
31
|
0.56
|
3.10
|
|
SBG25SLL
|
23
|
21.8
|
60
|
7×11×9
|
20
|
4000
|
24667
|
48069
|
44
|
50
|
49
|
0.73
|
3.10
|
|
SBG30SL
|
28
|
25
|
80
|
9×14×12
|
20
|
4000
|
29204
|
53802
|
60
|
50
|
49
|
0.98
|
4.45
|
|
SBG30SLL
|
28
|
25
|
80
|
9×14×12
|
20
|
4000
|
35300
|
67904
|
75
|
81
|
80
|
1.28
|
4.45
|
|
SBG35SL
|
34
|
29
|
80
|
9×14×12
|
20
|
4000
|
38808
|
68698
|
96
|
75
|
73
|
1.63
|
6.40
|
|
SBG35SLL
|
34
|
29
|
80
|
9×14×12
|
20
|
4000
|
46070
|
90405
|
126
|
133
|
131
|
2.12
|
6.40
|
|
SBG45SL
|
45
|
38
|
105
|
14×20×17
|
22.5
|
4000
|
61642
|
110662
|
202
|
159
|
157
|
2.96
|
11.25
|
|
SBG45SLL
|
45
|
38
|
105
|
14×20×17
|
22.5
|
4000
|
75597
|
138552
|
250
|
238
|
235
|
3.75
|
11.25
|
|
SBG55SL
|
53
|
45
|
120
|
16×23×20
|
30
|
4000
|
91209
|
156918
|
344
|
274
|
270
|
4.52
|
15.25
|
|
SBG55SLL
|
53
|
45
|
120
|
16×23×20
|
30
|
4000
|
111847
|
196666
|
427
|
413
|
405
|
5.68
|
15.25
|
|
SBG65SL
|
63
|
58.5
|
150
|
18×26×22
|
35
|
4000
|
147980
|
240100
|
629
|
495
|
484
|
7.43
|
23.90
|
|
SBG65SLL
|
63
|
58.5
|
150
|
18×26×22
|
35
|
4000
|
189140
|
320460
|
834
|
850
|
830
|
12.05
|
23.90
|
|
|
韓國SBC直線導軌老款SBG-SL四方形
